Sandvik UH640

Formerly known as: CM6800

Sandvik UH640

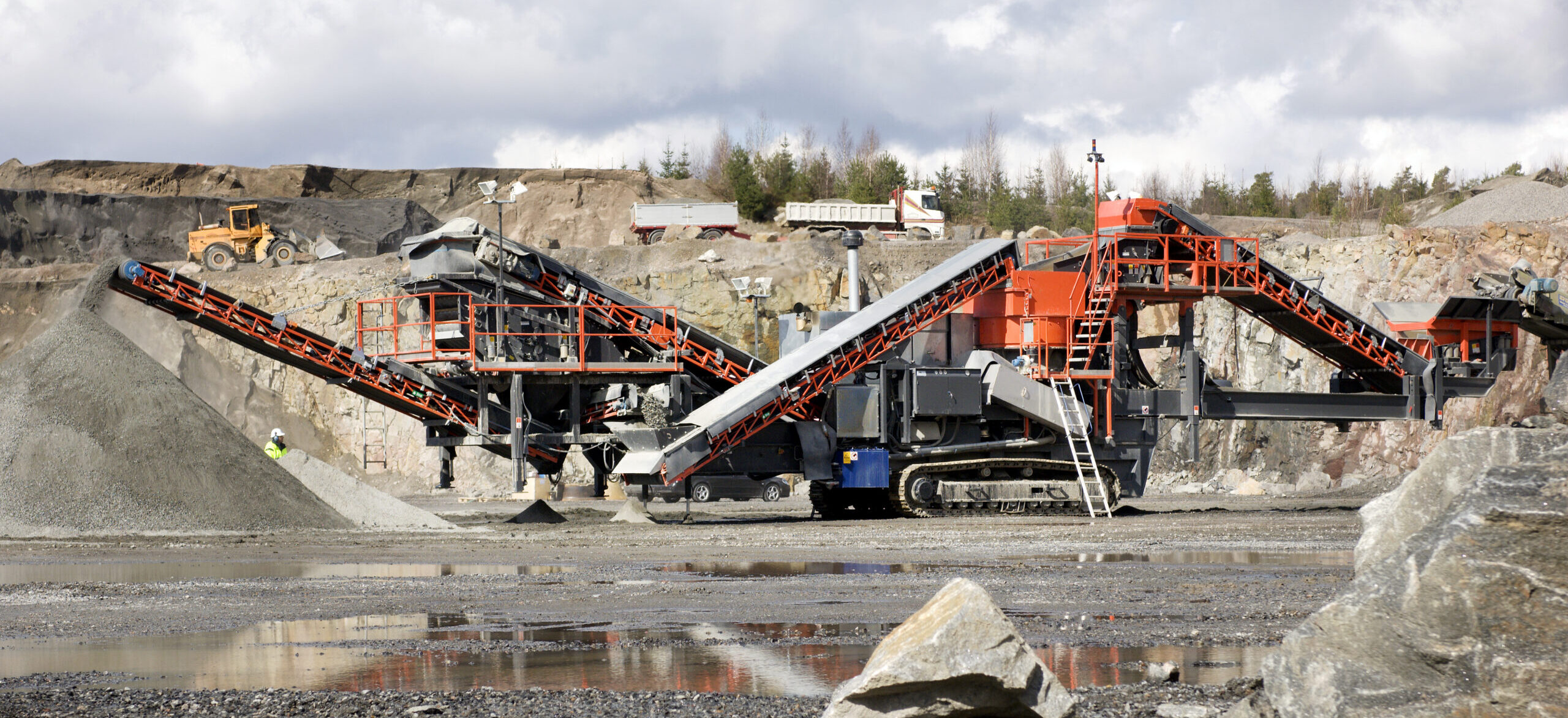

Sandvik UH640 Cone Crusher

The Sandvik UH640E is designed to be a flexible, highly productive secondary or tertiary cone crusher. This unique solution is capable of producing finished sized products due to the integral product screen and closed circuit operation

The Sandvik UH640E can maximize your production with the help of a pre-separation facility. This means the material is already separated, before moving on to the on-board, class-leading Sandvik CH660 cone crusher.

It is self-propelled on crawlers and all equipment onboard is electric-powered, either by the onboard genset or via an external power supply. The low emissions from this mean that whilst productivity is high, the environmental impact is low.

With Sandvik UH640E you will also benefit from a dual interlocking and intelligence system that is integrated with ASRi (automatic setting regulation system) which gives you optimal performance and minimal downtime. With the vast choice of different mantles and settings, Sandvik UH640 is ideal for a wide range of applications

Features and Benefits:

Ideally suited to produce high quality end product

Advanced process automation to ensure ease of operation

Pre-separation before the cone crusher to maximize production

Superb production capabilities driven by your needs

Easily accessed for service and maintenance

Low emissions and low cost per ton due to flexible operation through electrical mains or onboard diesel generator

Other models within the UH Mobile Cone Crusher range include the UH440i and UH440E

  • Manufacturer: Sandvik
  • Equipment: Sandvik CH660 Cone
  • Maximum Feed Size: 235mm / 9"
  • Engine: TAD 1642 GE 600 kVA / C18 594 kVA
  • Transport Length: Part 1 - 14.80 m / 48' 7" Part 2 - 4.50 m / 14' 9" Part 3 - 7.90 m / 25' 11"
  • Transport Width: Part 1 - 14.80 m / 48' 7" Part 2 - 4.50 m / 14' 9" Part 3 - 7.90 m / 25' 11"
  • Transport Height: Part 1 - 3.90 m / 12' 10" Part 2 - 3.00 m / 9' 10" Part 3 - 2.80 m / 9' 2"
  • Weight: Part 1 - 64,000 kg / 141,095 lbs Part 2 - 8,000 kg / 17,636 lbs Part 3 - 12,000 kg / 26,455 lbs
