Sandvik QJ341 Jaw

Formerly known as: Extec C-12, Extec C-12+, QJ340

Sandvik QJ341 Jaw

Sandvik QJ341 Jaw

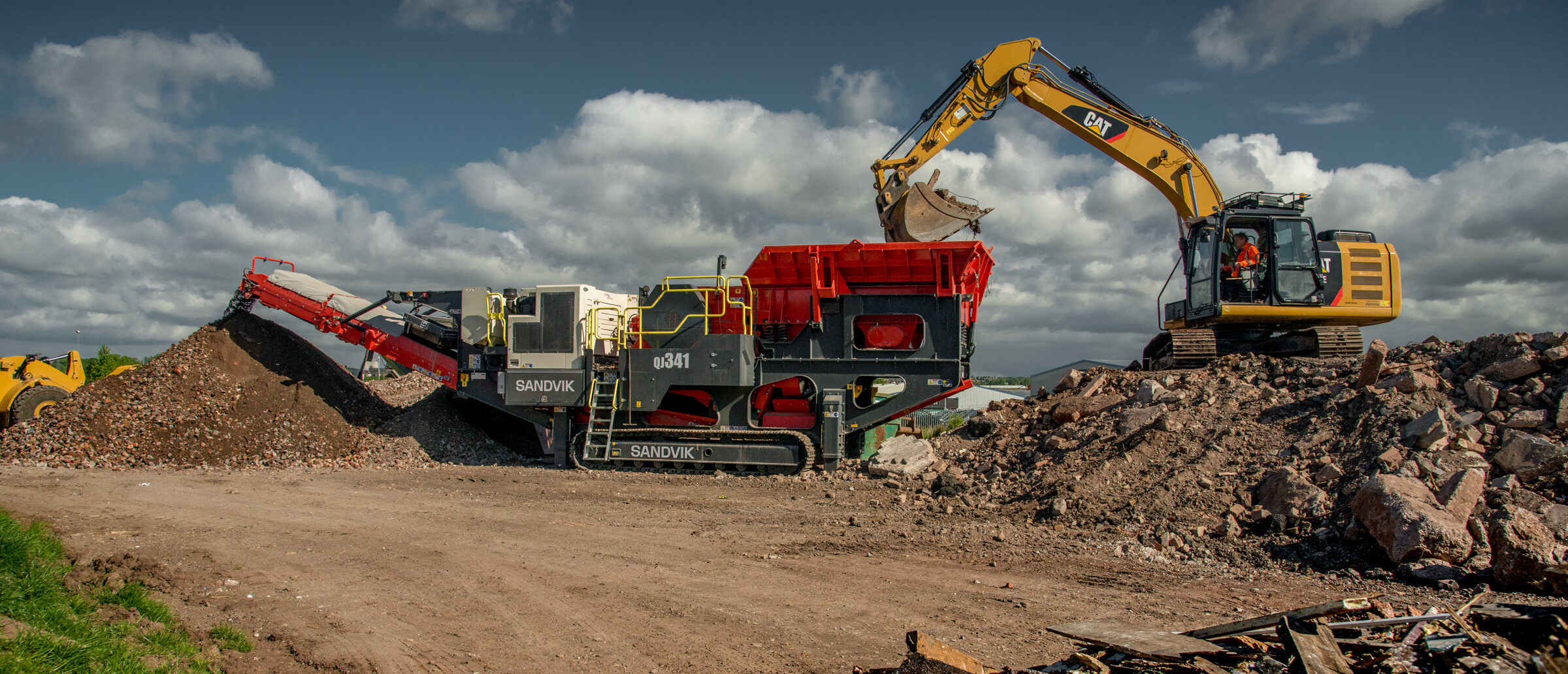

The Sandvik QJ341 mobile jaw crusher is the ideal solution for a wide range of applications. It’s equipped with a C12 jaw crusher, a powerful and fuel-efficient engine, and is designed to tackle the most difficult operations.

The Sandvik QJ341 mobile jaw crusher features a 1,200 x 750mm (47 x 29 in.) jaw opening, built to tackle the most difficult applications with ease. It has been designed to meet the needs of the operator seeking a high performance mobile jaw crusher which is both reliable and durable. With a large feed opening and unique high crushing speed it is capable of delivering high outputs with excellent reduction ratios. In addition to this, the equipment can start under load, which enables maximum uptime and productivity.

The powerful jaw crusher is capable of a variety of tasks with its large under-belt clearances, and is equipped with a hydraulic raise and lower facility on the main conveyor as standard. There are a number of features to minimize operator intervention whilst maximizing their safety, such as the self-locking hopper and jaw level sensor which controls feed rate with minimal input from the user.

Features and Benefits:

Hydraulically adjustable jaw setting to maximize your output

Reverse crushing action to crush sticky material or relieve blockages

Hydraulic drive enabling the crusher to start under load, minimizing downtime

Jaw level sensor available to control feed rate with minimal intervention

Raise/lower facility on the main conveyor, ideal for your recycling operations


Other models within the QJ Mobile jaw crusher range of jaws include the QJ241 and QJ341.

  • Manufacturer: Sandvik
  • Equipment: Single Toggle C12 Jaw Crusher
  • Feed Opening: 1200 x 750 mm / 47" x 29"
  • Maximum Feed Size: 650 mm / 25" 6'
  • Engine: C9 / C9.3 Acert 261 kW / 350 hp D11 Volvo 265 kW / 355 hp
  • Transport Length: 14.15 m / 46' 5 ⅛"
  • Transport Width: 2.86 m / 9' 4 ½"
  • Transport Height: 3.44 m / 11' 3 ¼"
  • Weight: 50,147 kg / 110,555 lbs
