Sandvik QI341
Sandvik QI341 Impact Crusher

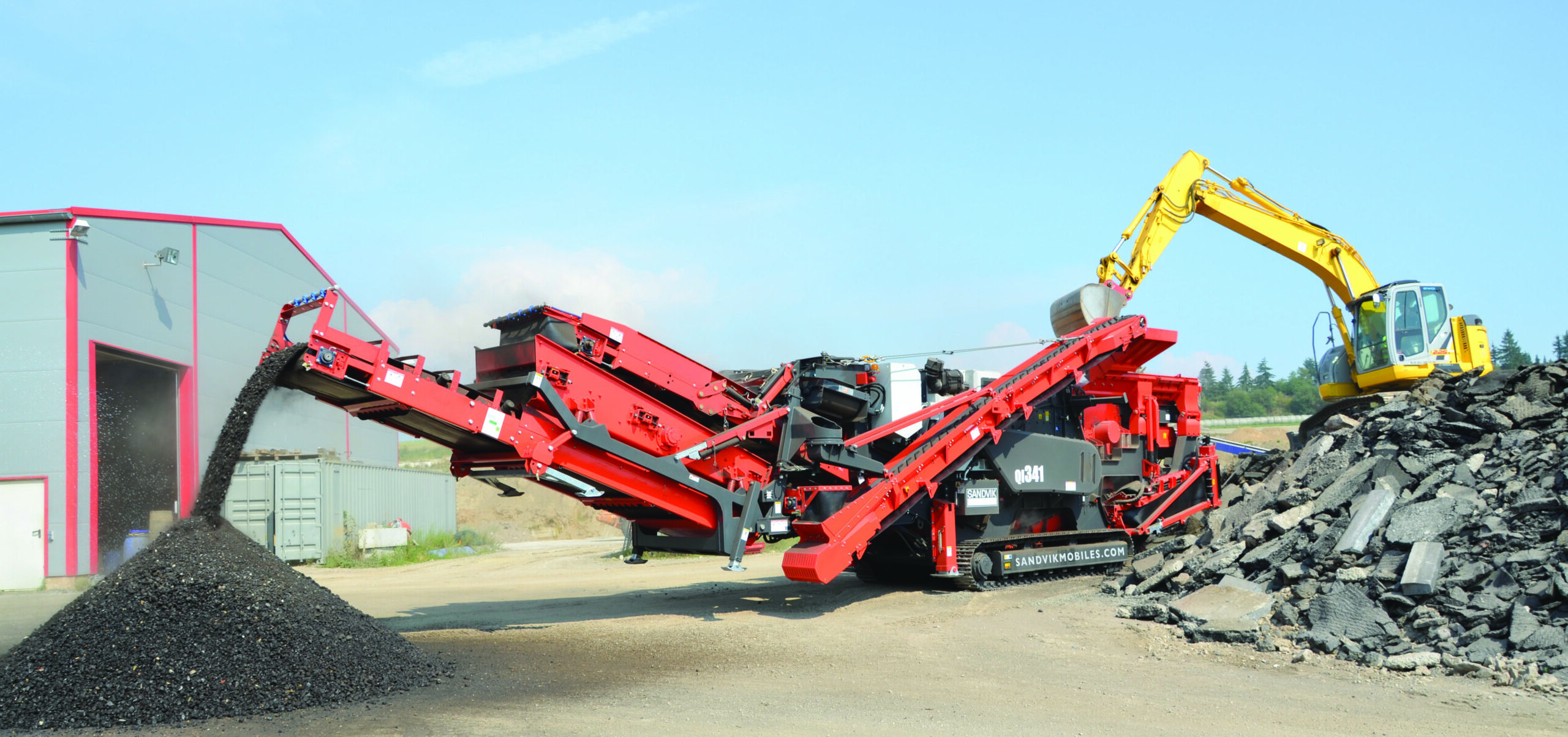

The Sandvik QI341 mobile impact crusher is the most versatile and cost effective mid-sized unit on the market. Fitted with the CI611 Prisec impactor, this unit can operate in both primary and secondary applications
This fully mobile, compact impact crusher is designed to meet the tightest end-product specifications while providing the operator an unparalleled level of flexibility, productivity and control. The compact dimensions of Sandvik QI341 mobile impactor make it ideal for sites where space is limited, but where superb product shape and high levels of production are required.
The unique crescent profile design of the hammers ensures maximum reduction of material, even as the hammers wear. The 992 x 670 mm (39 x 26½ in.) feed opening can be raised by radio control, and the rotor speed is adjustable to control fines production. Available in open or closed circuit versions, Sandvik QI341 mobile impact crusher is the ultimate contractor machine.
Features and Benefits:
User friendly PLC control system and color screen for ease of operation
Raise/lower capability on the main conveyor, magnet and ceramic blow bars as standard
Adjustable tip speed for precise end-product refinement
Reversible hydraulically-driven cooling fan with automatic backflush feature
Wear-resistant feeder liner plates are standard, reducing wear cost
Other models within the Q Mobile Impact Crusher range include the QI442 and QI353.
- Manufacturer: Sandvik
- Equipment: Sandvik CI411 Prisec™ Impactor
- Feed Opening: 992 x 670 mm / 39" x 26 ½"
- Maximum Feed Size: 600 mm / 23 ⅝"
- Engine: C9 / C9.3 Acert 261 kW / 350 hp
- Transport Length: 14.08 m / 46' 2"
- Transport Width: 2.50 m / 8' 2"
- Transport Height: 3.40 m / 11' 2"
- Weight: 37,200 kg / 82,012 lbs or 44,978 kg / 99,160 lbs w/Hanging Screen
Technical Specifications
