Sandvik QH332

Sandvik QH332

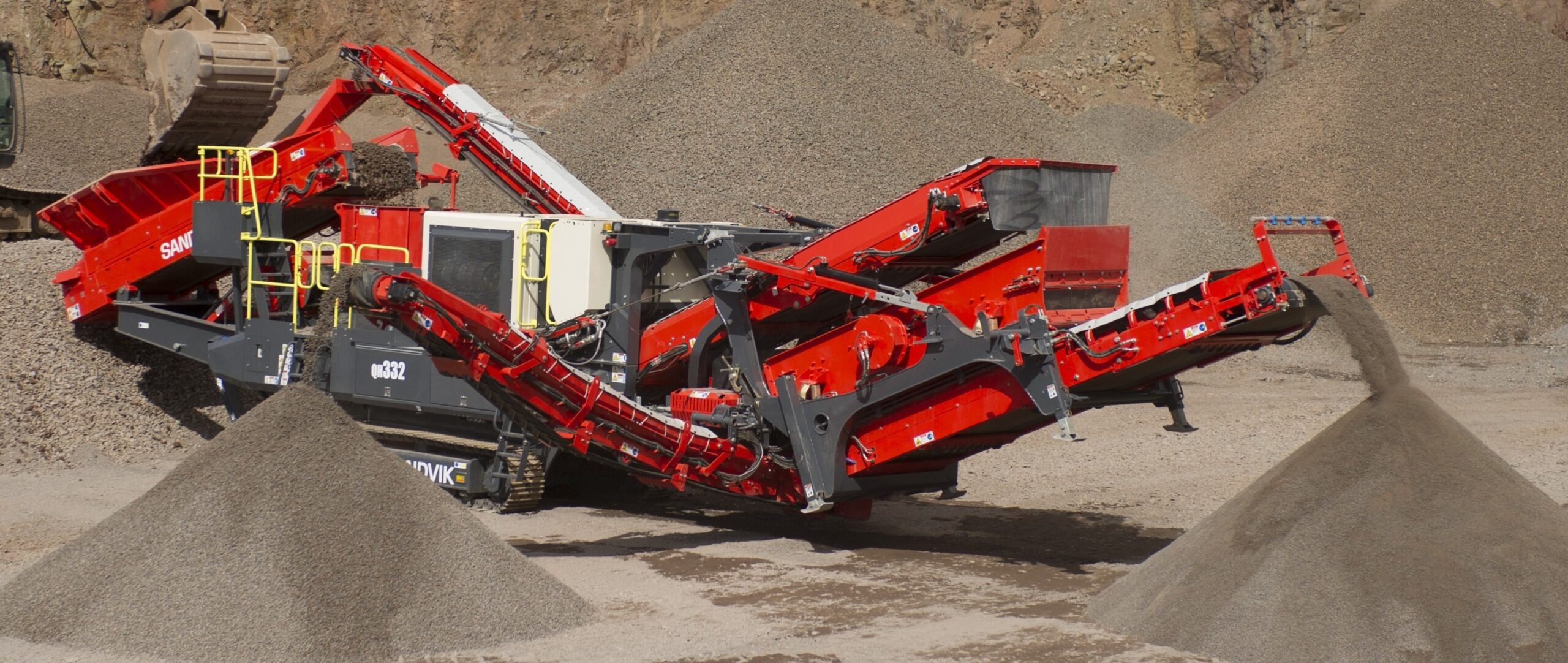

Sandvik QH332 Cone Crusher

The Sandvik QH332 is a tracked, self-contained cone crusher designed for versatility, safety and high performance. Featuring the Sandvik Hydrocone crusher, it comes with a number of features to ensure maximum uptime and minimum operator intervention.

The Sandvik CH430 cone crusher is at the heart of this machine. This advanced piece of crushing technology comes equipped with a hydroset system, which puts the user first by providing both safety and setting adjustment functions. In addition, the automatic setting regulation system will not only optimizes production for you but will also keep track of liner wear, minimizing interruptions and maximizing uptime.

The cone comes with a choice of six different crushing chambers and a number of different bush settings, making it the ideal choice for a huge variety of crushing jobs. This machine is powered by a 261kW (350hp) engine and a fuel efficient direct drive system to ensure maximum production capacity and maximum power transfer.

Features And Benefits:

No crusher backing required behind the liners which allows the crusher to be operational immediately after a liner change

Direct drive through a wet clutch with eight SPC drive belts to ensure maximum fuel efficiency and power delivery

Variable crusher speed through the engine rpm to manipulate the gradation of the end product

Maximum feed size up to 185 mm and capable of up to 220 tph on the larger bush setting

Remote camera which makes the crushing chamber visible from ground level

Optional double or single deck hanging screen for 1, 2 or 3 way split.


Other models within the QH Mobile cone crusher range include the QS332 and QH441.

  • Manufacturer: Sandvik
  • Equipment: Sandvik CH430 Hydrocone
  • Transport Length: 15.82m / 51' 10"
  • Transport Width: 2.8m / 9' 2"
  • Transport Height: 3.4m / 11' 2"
  • Weight: 36,000kg / 79,366lbs
