Keestrack R6

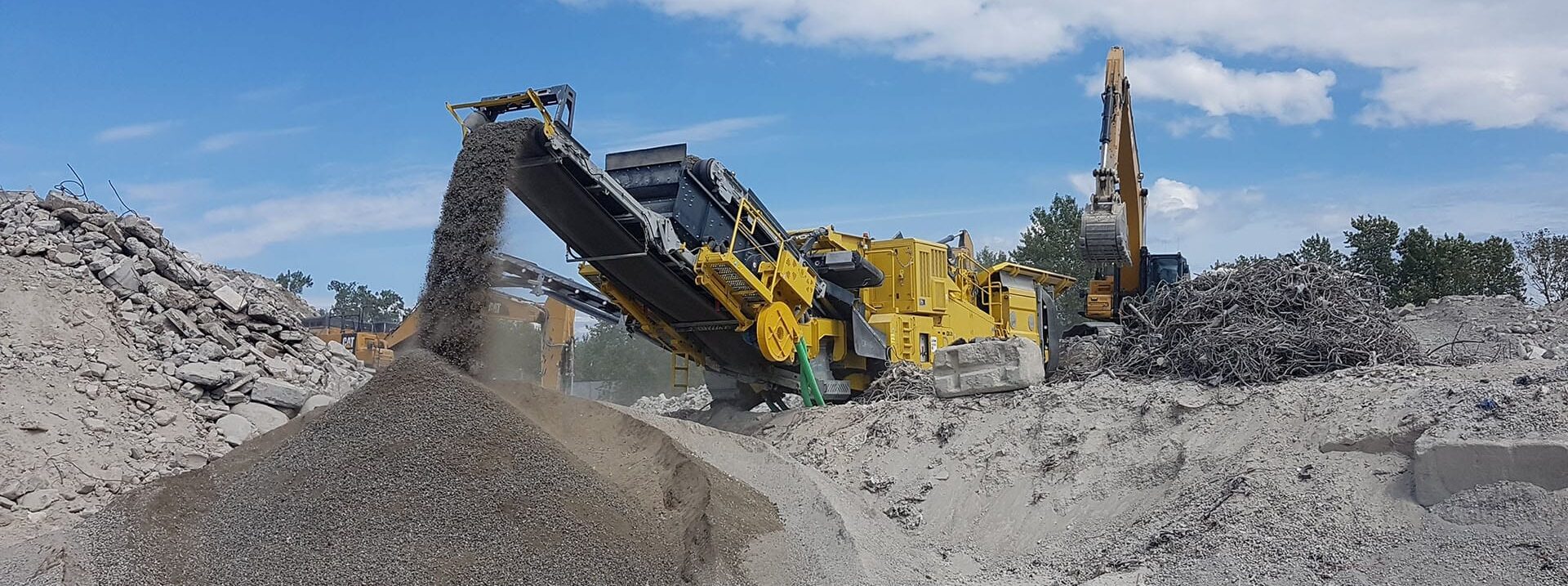

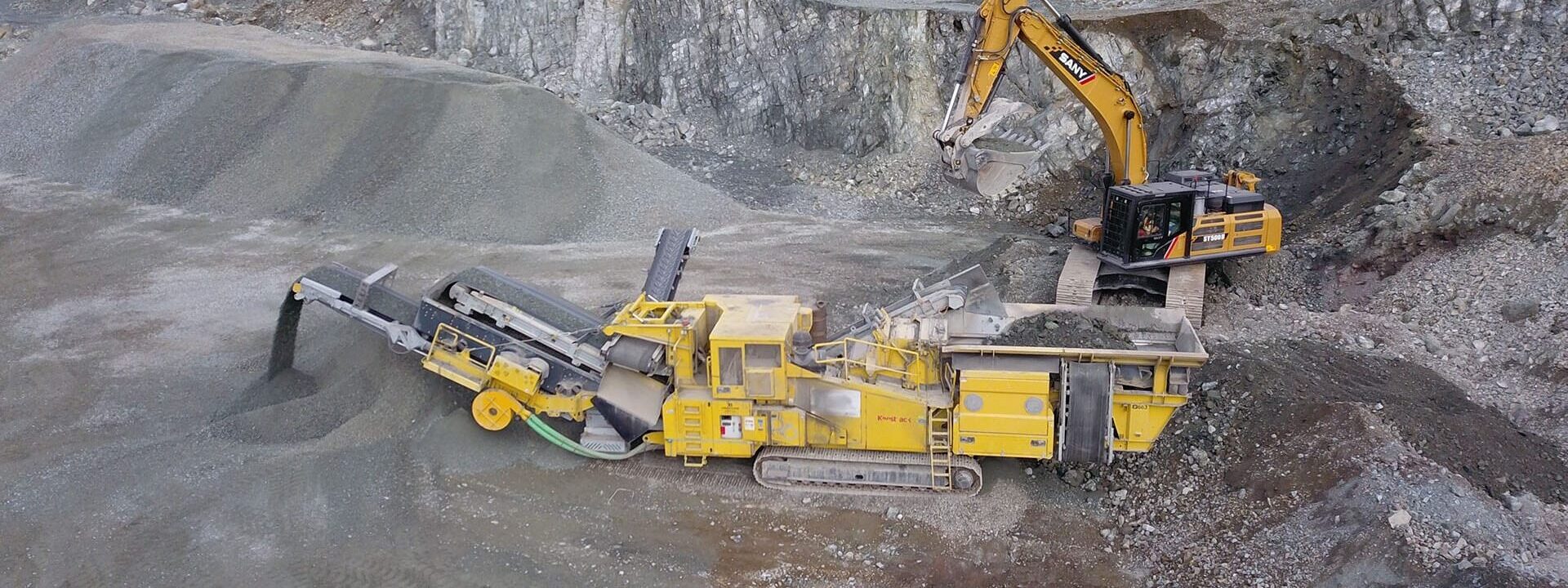

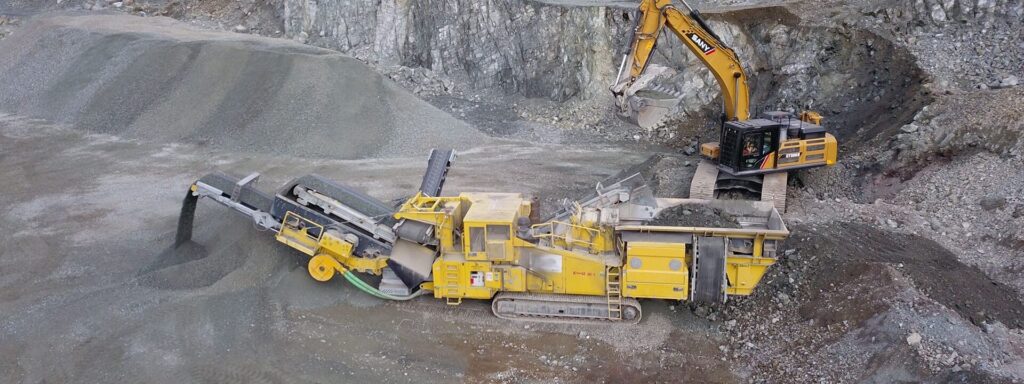

Keestrack R6 impact crusher
The Keestrack R5 combines tremendous fuel economy with great productivity. Designed with a load sensing hydraulic system to reduce emissions, owners can take advantage of the average fuel savings of 4 to 6 litres an hour. The Keestrack R5 mobile crusher is an absolute must-have for any serious gravel, quarry, mining, or concrete recycling operation.
Equipped with a large independent 2-deck pre-screen and reversible prescreen conveyor, the R5 impact crusher minimizes wear and tear on the crushing chamber by removing fines from the material before entering the crusher, ultimately extending the lifespan of the machine. Sticky fine material can be discharged safely without clogging up the machine. The hydraulic release system within the crusher inlet opening coupled with the load sensing hydraulic drive for feeders ensures a smooth crush without jamming and interruptions in your production
Features and Benefits
- Unrivaled Performance
- Hopper 7 m³ (9 yard³)
- Independent 2-deck pre-screen 3.100 x 1.250 mm (10’ x 4’)
- Due to long pre screen, higher crushing capacities and less wear
- Inlet opening (H x W) 970 x 1.300 mm (38” x 51”)
- Very robust HB 450 rotor; diameter 1.276 mm (50”), rotor width 1.250 mm (49”)
- Optional 2 deck after screen 4.500 x 1.500 mm (15’ x 5’), removable with standing legs
- Swiveling oversize return conveyor / stockpile conveyor
- Also available in Electric version with electric or direct driven Rotor by Diesel engine
- Tilting chassis
- Capacity up to 500 tonnes / hour
- Load sensing hydraulic system reduces fuel usage by 25%
- 2 speed track drive
- Dolly transport system available
- Highest reduction ratio
- Superior product shape
- Extensive option list to configure to your application
- Optional windsifter
- Manufacturer: Keestrack
- Transport Length: 14.700 mm (48’4”)
- Transport Width: 3.000 mm (9’10”)
- Transport Height: 3.490 mm (11’5”)
- Weight: 42,5t (46 sT)
