Keestrack R5

Keestrack R5

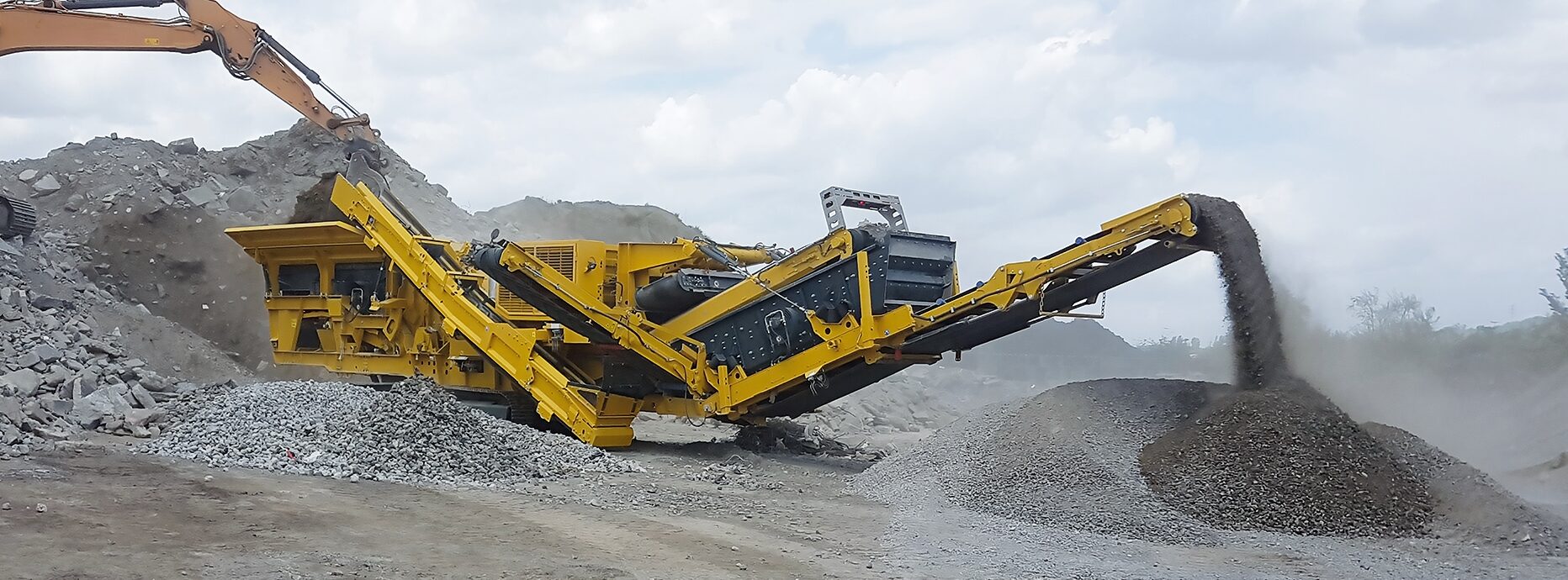

Keestrack R5 Impact Crusher

The Keestrack R5 combines tremendous fuel economy with great productivity.  Designed with a load sensing hydraulic system to reduce emissions, owners can take advantage of the average fuel savings of 4 to 6 liters an hour. The Keestrack R5 mobile crusher is an absolute must-have for any serious gravel, quarry, mining, or concrete recycling operation.

Equipped with a large independent 2-deck pre-screen and reversible prescreen conveyor, the R5 impact crusher minimizes wear and tear on the crushing chamber by removing fines from the material before entering the crusher, ultimately extending the lifespan of the machine. Sticky fine material can be discharged safely without clogging up the machine.

The hydraulic release system within the crusher inlet opening coupled with the load sensing hydraulic drive for feeders ensures a smooth crush without jamming and interruptions in your production.

Features and Benefits

  • Hopper 5 m³ (6,5 yard³)
  • Independent 2-deck pre-screen 2.200 x 1.000 mm (7’ x 3’)
  • Due to long pre screen, higher crushing capacities and less wear
  • Inlet opening (H x W) 800 x 1.050 mm (31” x 41”)
  • Rotor diameter 1.260 mm (50”), rotor width 1.000 mm (39”)
  • Swiveling oversize return conveyor / stockpile conveyor
  • Optional single deck after screen 3.300 x 1.500 mm (11’ x 5’), 4,95 m²
  • Optional double deck after screen
  • Also available in Electric version with electric driven Rotor and plug-in / plug-out functionality
  • Tilting chassis
  • Capacity up to 350 tonnes / hour
  • Load sensing hydraulic system reduces fuel usage by 25%
  • 2 speed track drive
  • Highest reduction ratio
  • Superior product shape
  • Extensive option list to configure to your application
  • Optional windsifter
  • Manufacturer: Keestrack
  • Equipment: Keestrack R5
  • Feed Opening: (H x W) 800 x 1.050 mm (31” x 41”)
  • Transport Length: 14.700 mm (48’4”)
  • Transport Width: 3.000 mm (9’10”)
  • Transport Height: 3.490 mm (11’5”)
  • Weight: 42,5t (46 sT)

Technical Specifications
