Keestrack R3

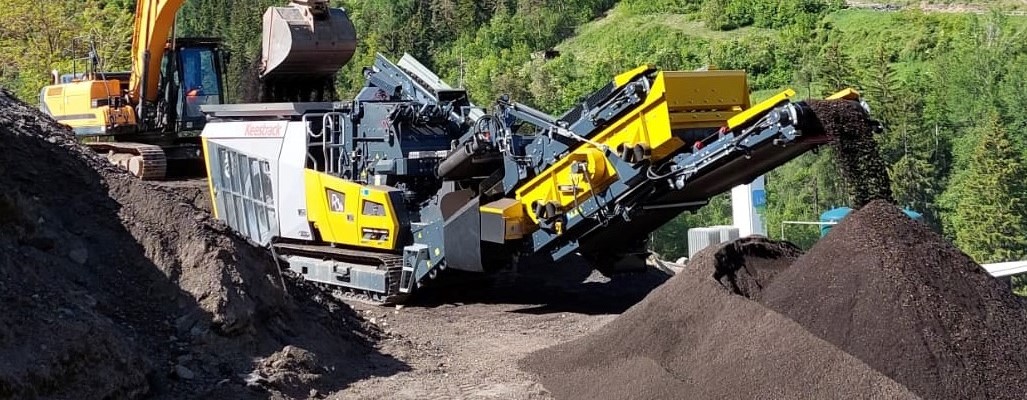

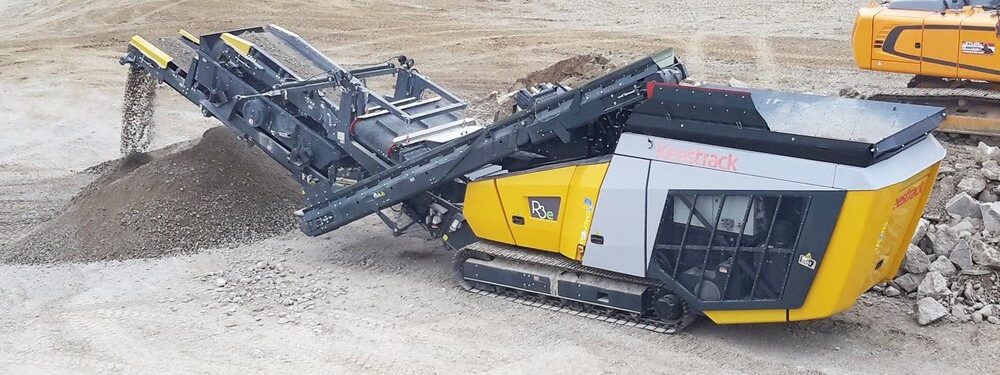

Keestrack R3 impact crusher
The Keestrack R3 Impact Crusher is the top compact crusher in the industry. It provides optimal results and product shape with one of the lowest equipment costs. Combined with its easy transport dimensions, superior fuel efficiency, and high capacity, it’s ideal for primary and secondary crushing, construction and demolition, and concrete or landfill recycling.
The R3 is equipped with a vibrating punch plate pre-screen, a large inlet opening, and vigorous 44″” rotor resulting in optimal reduction ratios and a capacity of 250 tph. To prevent jamming, the hopper is designed using a unique asymmetrical shape that aids in turning elongated boulders. Superior design and top of the line materials such as Hardox steel used within the hopper, frame, and wear plates result in an increased lifespan of the machine and reduce maintenance. Coming in under 30 tonnes this machine is easy to transport, making it the perfect machine for contractors on the move.
Features and Benefits
- Available in full hybrid e version
- Equipped in closed circuit < 30.000 kg, easy to transport
- Hopper 3,5 m³ (4,5 yard³)
- Vibrating feeder with punched plate pre screen 1.200 mm x 920 mm (4’ x 3’)
- Due to integrated pre screen, higher crushing capacities and less wear
- Inlet opening (H x W) 770 x 960 mm (30” x 38’’)
- Superior rotor diameter 1.100 mm (44”)
- Optional 3rd impact panel as milling beam to produce high value end product
- Optional single deck after screen 3.100 x 1.400 mm (9’ x 4’)
- Capacity up to 250 tonnes / hour
- Load sensing hydraulic system reduces fuel usage by 25%
- 2 speed track drive
- Highest reduction ratio
- Superior product shape
- Extensive option list to configure to your application
- Optional windsifter
- Manufacturer: Keestrack
- Transport Length: 10.000 mm (32’10”)
- Transport Width: 2.540 mm (8’4”)
- Transport Height: 3.200 mm (10’6”)
- Weight: 27,5t (30sT)
